2 Story House Plan - 3 Bedroom - Attached Garage

PLN-G2009 Front 1.jpg

Whiteside

nickname

PLN-G2009 Plan 1_edited.jpg
PLN-G2009 Plan 2_edited.jpg



Whiteside (nickname)

Plan # PLN-G2009

Plan #PLN-G2009  Specifications

Overall size             2282 sq/ft

Overall Dimensions  57.5ft W x 50ft D

Roof Pitch               6-12

Exterior Walls          2x6

Bedrooms                3

Bathrooms -             2-1/2

Attached Garage

Ceiling Ht -             9ft

​

Features

This beautiful 2 story house with attached garage has a unique layout and measures a spacious 2282 sq/ft.

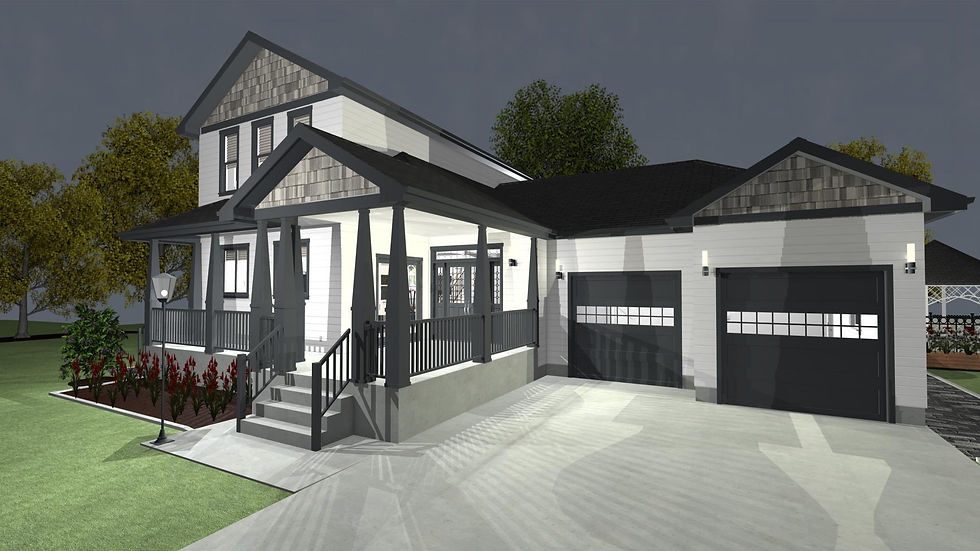

The front features a large covered entrance with impressive double front doors and sidelights. To the left of the  front doors is the full glass patio door entering straight into the kitchen.  Walking through the front doors you will see a large entrance with closet to the right and entrance to the kitchen to the left.  Straight ahead down the hall is the main level bathroom, laundry room and at the back is the mud room,  which is also the entrance from the double car garage. To the left the spacious L shaped kitchen has a large island with  room for 3 to sit at the back side.  The dining room with space for table large enough for family gatherings, is set between the kitchen and Great room.  The great room features a fireplace on the back wall and TV on side wall and room for lots of seating to settle in and enjoy the surroundings. The back door is just round the corner from the great room and leads out onto a large rear deck.



The L shaped open stair going up to the second level is next to the dining room and connects to a spacious upper hall which leads to the 3 bedrooms and upper level bath.   The master bedroom has large bathroom with shower and walk-in closet. The main upper level bathroom features large vanity with double sinks and bath tub.  Back down stairs the large double car garage finishes off every thing you need for an exclusive home.

​

1st and 2nd Floor Details

Front Entry                 9'-2" x 9'-0"

Great Room                14'-7" x 19'-1"

Kitchen                       14'-6" x 19'-1"

Dining Rm                   15'-4" x 19'-6"

Main Level Bath          7'-2 x 6'-2"

Ensuite Bath off of the main bedroom

                                 5'-11" x 7'-5"

Bedroom 1                  16'-7" x 13'-0"

Bedroom 2                 10'-10" x 11'-11"

Primary Bedroom        12'-9" x 14-7"

Mudroom                   7'-2" x 8'-11"

Attached Garage        25' x 26'

​



* Note that while every effort is made to ensure the Descriptions above are as accurate as possible, they are still subject to data entry error. KQW&D makes no guaranty as to accuracy.



PDF Plan Set (digital Document) includes:

-Cover Page with Isometric views

-Main Level floor plan + 2nd Level Plan

-Electrical Plans

-Foundation plan

-Sections / Roof planes / Stair detail plan

-Elevations plan



*PDF's are scaled for print to 24" x 36" Sheets. You may print at alternate sizes but be aware they will not be to the indicated scale.



When you press the buy plan button below you will be able to pick from these options:



Base PDF Plan Set Price - $ 895.00

(Digital image file -Does not include printed plans)

(Includes License to print plans for the construction of One dwelling)



Plan Options



Option - Reverse Plan   - $ 75.00



Kitchen Plan Inc. Island - $ 100.00

​

* All priced are in Canadian Dollars (CAD) and include GST. For orders from all Canadian Provinces the buyer is responsible to pay PST directly to their Province (if applicable).
